Suspended platform for bridge maintenance
Project requirements

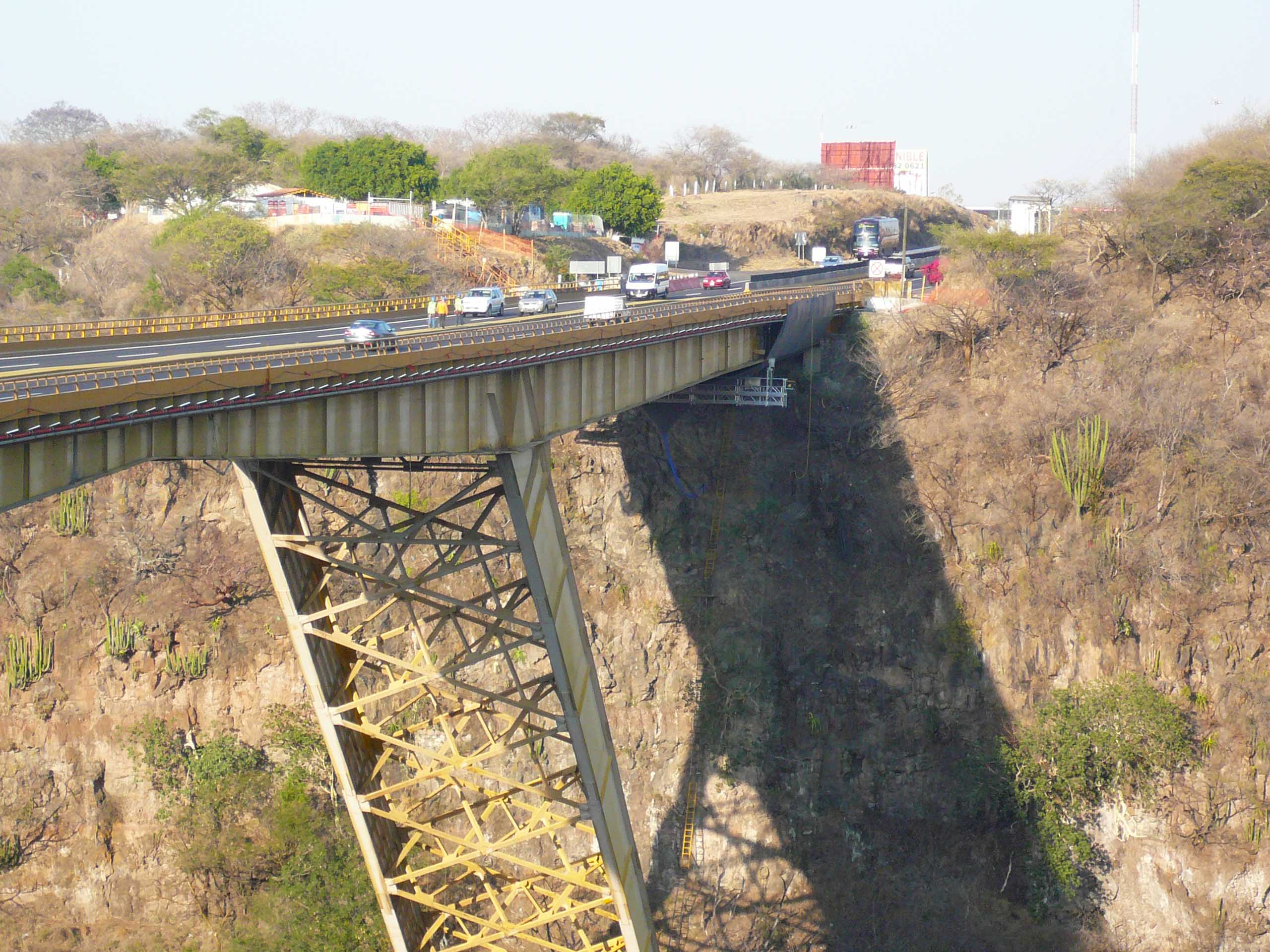

To carry out a total rehabilitation of a riveted steel bridge, the client requested an access solution to reach the underside of the metal bridge deck, capable of both vertical and horizontal movement to cover the entire span.
Supply of an Accesus Komplet suspended platform that travels on rails to access any point on the underside of the bridge. Additionally, a second, wider platform was developed specifically for conducting the maintenance work.
- Location: Guadalajara, Mexico
- Sector: Civil engineering
- Subsector: Bridge maintenance
- Application: Bridges and viaducts
Project requirements
To carry out a total rehabilitation of a riveted steel bridge, the client requested an access solution to reach the underside of the metal bridge deck, capable of both vertical and horizontal movement to cover the entire span.
Supply of an Accesus Komplet suspended platform that travels on rails to access any point on the underside of the bridge. Additionally, a second, wider platform was developed specifically for conducting the maintenance work.
- Location: Guadalajara, Mexico
- Sector: Civil engineering
- Subsector: Bridge maintenance
- Application: Bridges and viaducts
Solution

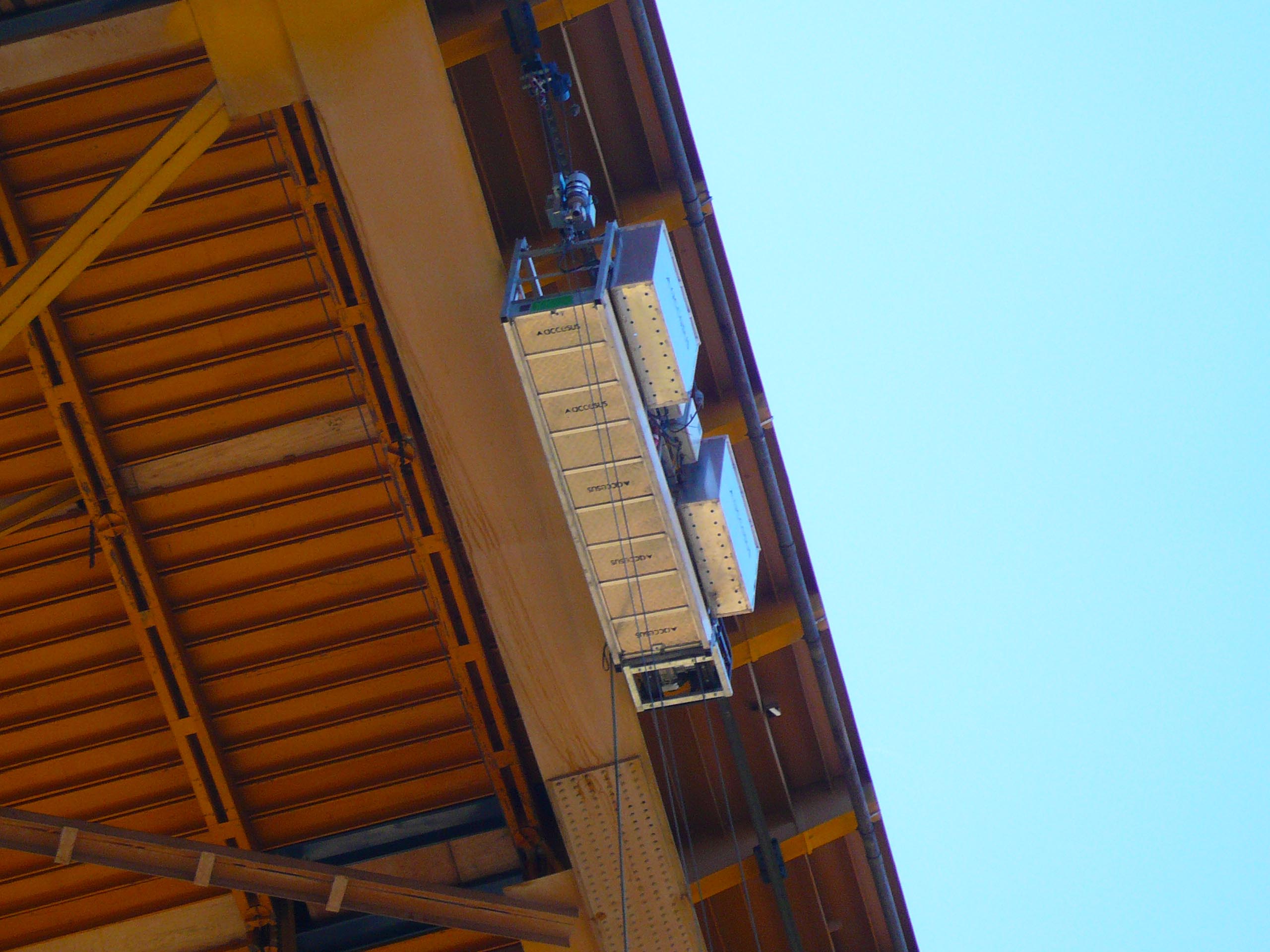

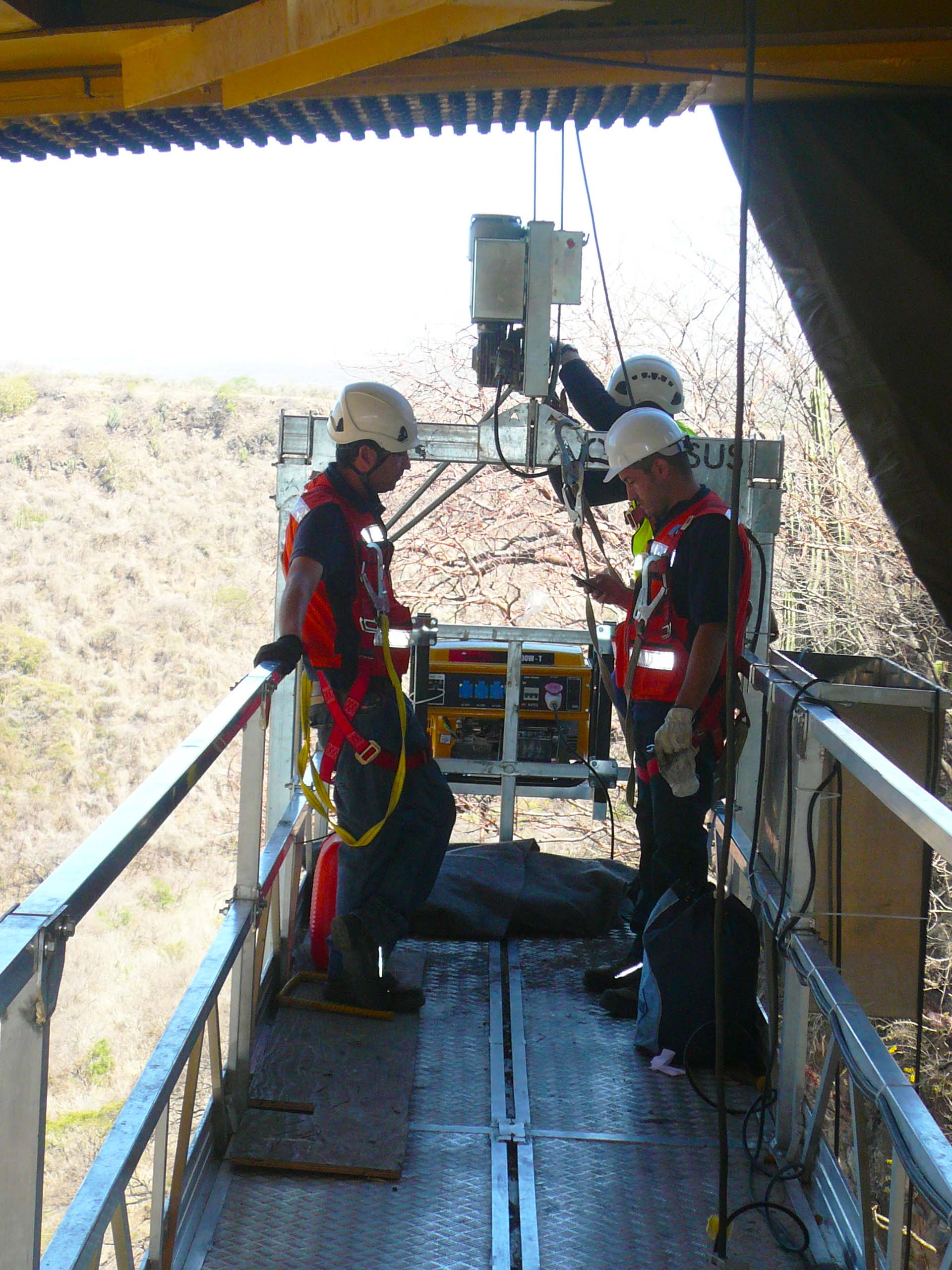

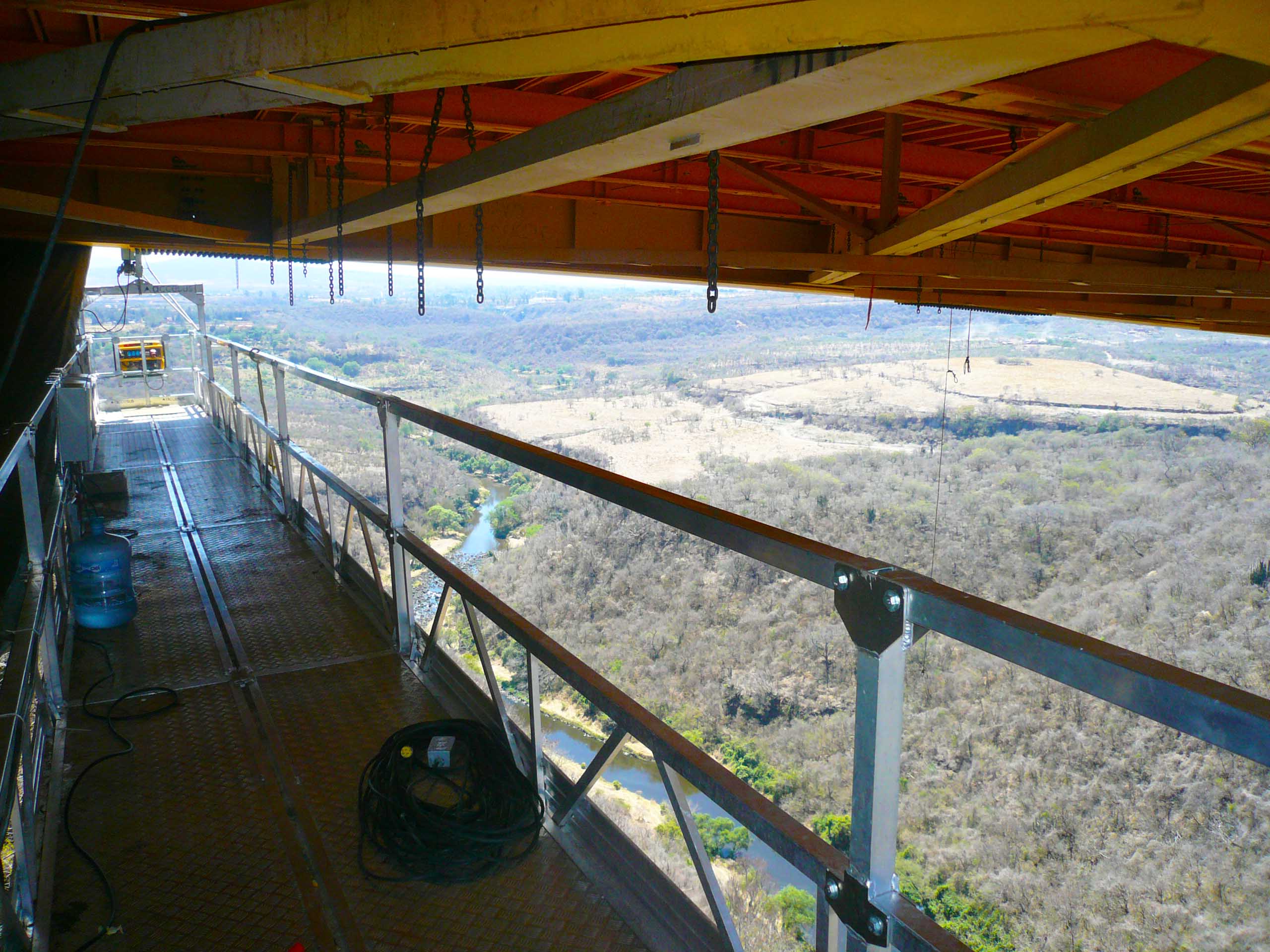

The first, smaller platform travels along the rail to transport operators to the main work platform. The main work platform, featuring a special 1.5-meter width, is suspended via motorized trolleys moving perpendicular to the bridge deck.

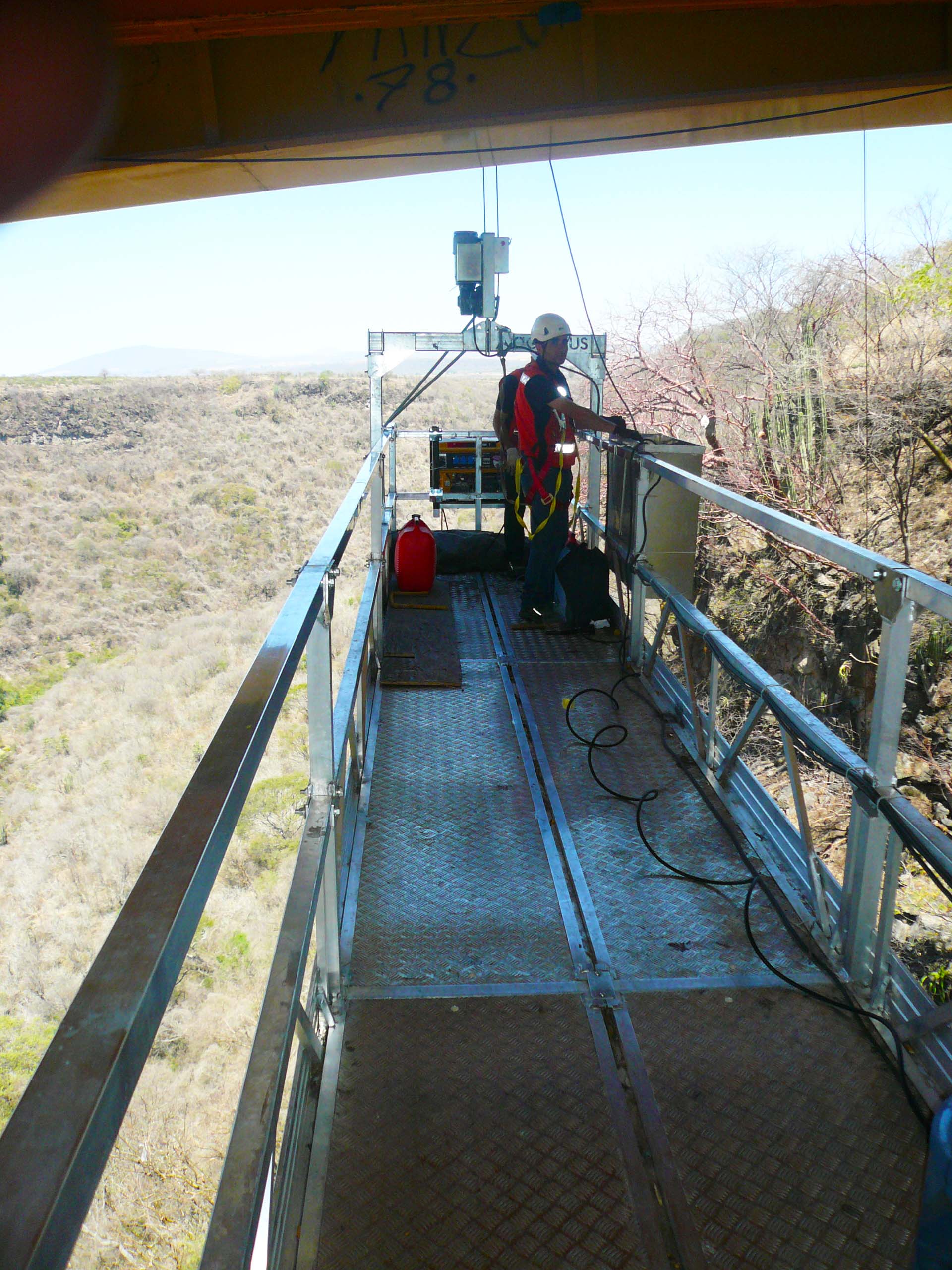

The total height reaches nearly 500 meters above the ground at the central point of the river. An autonomous generator was chosen to power the platform, eliminating the need for excessively long electrical hoses.
- Project Ref: 211009
- Height: 100 meters
- Regulations: 2006/42/EC, EN 1808
Solution
The first, smaller platform travels along the rail to transport operators to the main work platform. The main work platform, featuring a special 1.5-meter width, is suspended via motorized trolleys moving perpendicular to the bridge deck.
The total height reaches nearly 500 meters above the ground at the central point of the river. An autonomous generator was chosen to power the platform, eliminating the need for excessively long electrical hoses.
- Project Ref: 211009
- Height: 100 meters
- Regulations: 2006/42/EC, EN 1808
Project photos
These are some of the photographs we took at the exact moment during the installation and commissioning of the project.
In them, you will be able to appreciate the materials used, our team's work during assembly, and the quality of the entire deployment.
Project photos
These are some of the photographs we took at the exact moment during the installation and commissioning of the project.
In them, you will be able to appreciate the materials used, our team's work during assembly, and the quality of the entire deployment.
