Tubular frame rescue stretcher cr30

Rescue stretcher for people with a tubular structure, mesh, and CR 30 plastic cover. It is dismountable thanks to the threaded closure system of the tubular structures. A mesh is placed over these structures to hold and ensure the injured person's comfort, and a plastic baseboard is also provided. For helicopter rescue operations, crane use, military maneuvers...

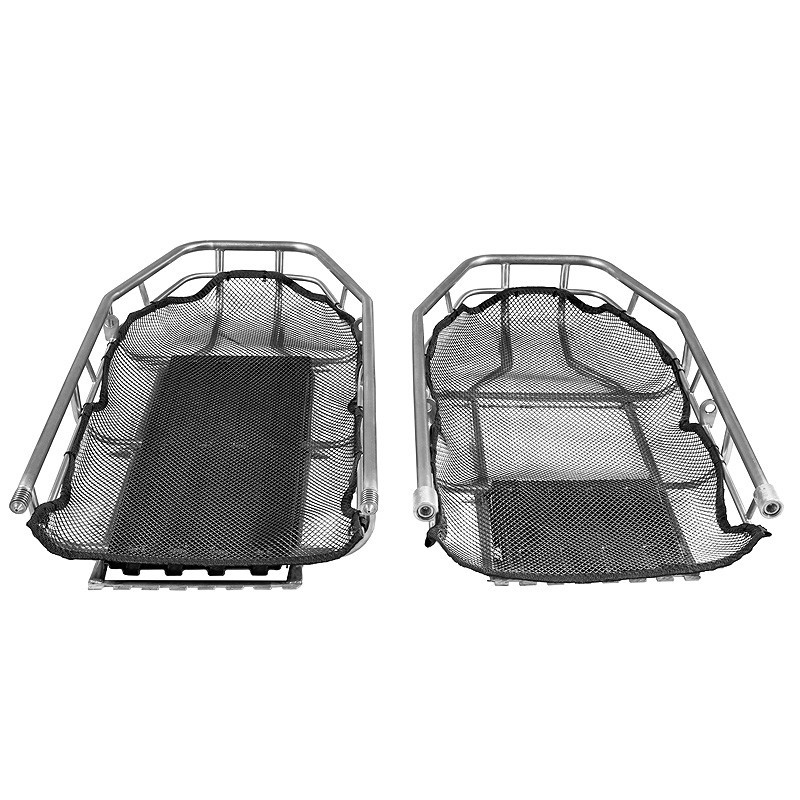

• Removable stainless steel tubular structure in 2 parts.
• Plastic mesh attached to the tubular structure.
• Stabilizing board for the injured person.
• 4 straps for securing the injured person.

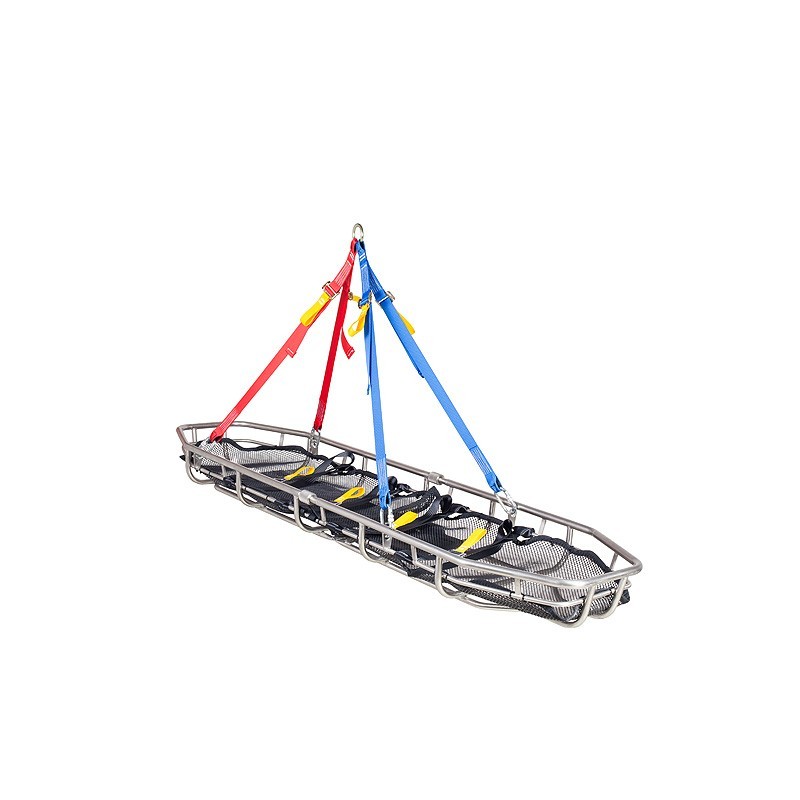

• Optionally, it can include slings for helicopter or crane use and a protective mask for the injured person's face.
• Dimensions: 2.12 x 0.58 x 0.18 m.
• Material: stainless steel for the structure and plastic for the mesh and board.
• Weight: 16 kg.
• Acceptable temperature range: -50ºC / +50ºC.
• Static strength: 500 kg.
• Maximum load capacity: 1,000 kg
