MODUBLADE II

Name: MODUBLADE II
SKU: 200009161C

SKU: 200009161C.

Categories: Suspended platforms and other access systems, Assembly and Set Up, Suspended platforms and other access systems, Assembly and Set Up, Wind turbine suspended platforms, Wind turbine suspended platforms, Assembly and Set Up, Suspended platforms and other access systems, Wind turbine suspended platforms.

Tags: aerogeneradores aerogeneradores aerogeneradores andamio colgante andamio colgante andamio colgante plataforma plataforma plataforma

MODUBLADE II

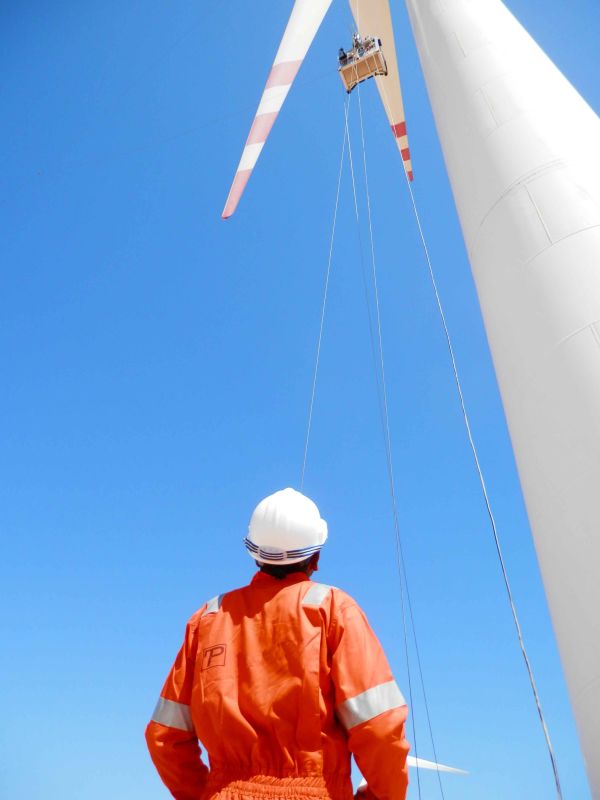

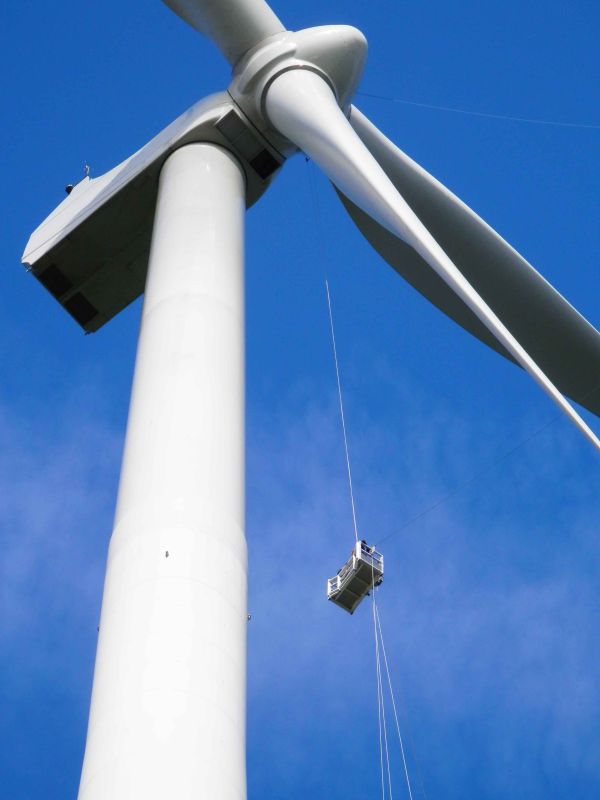

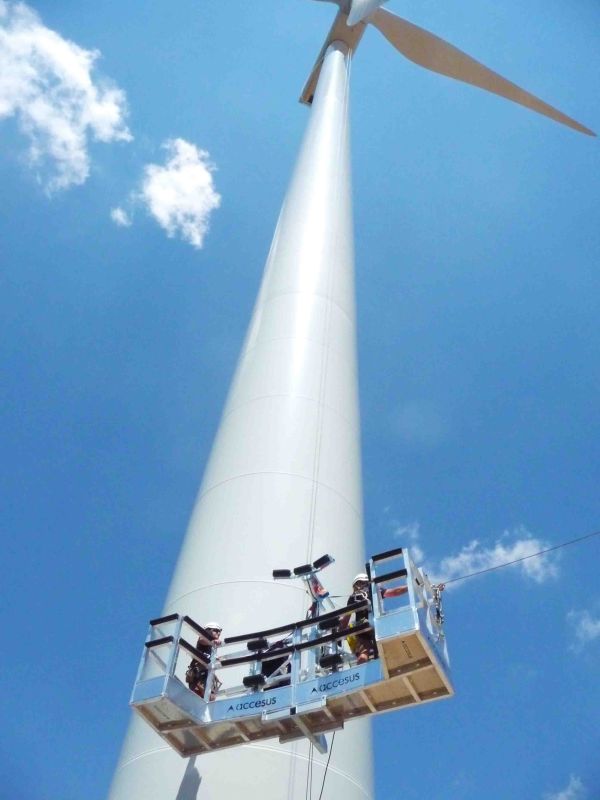

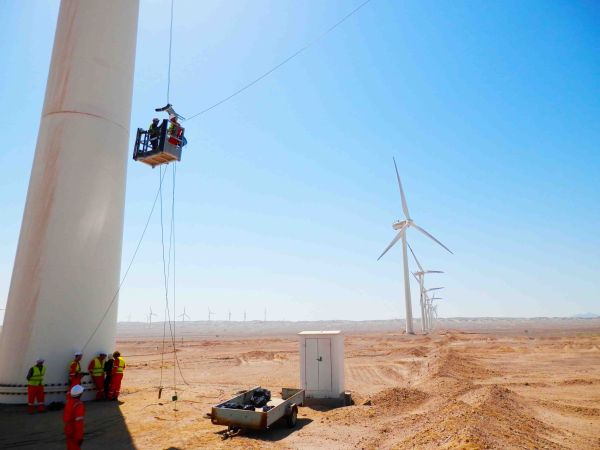

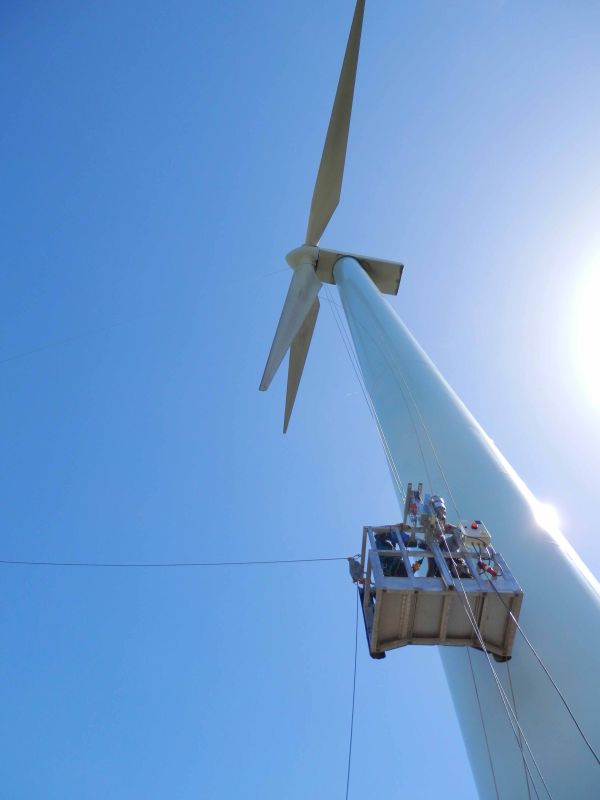

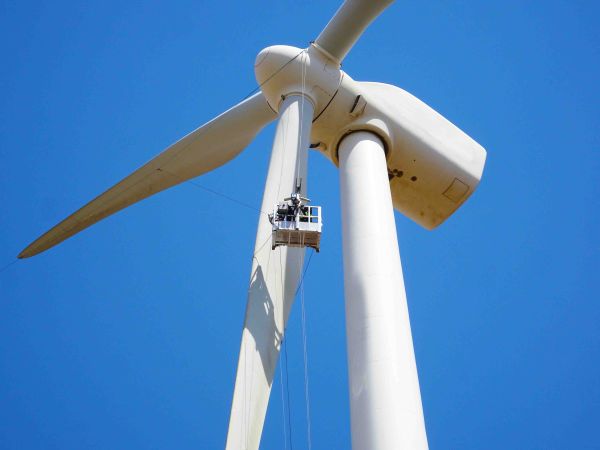

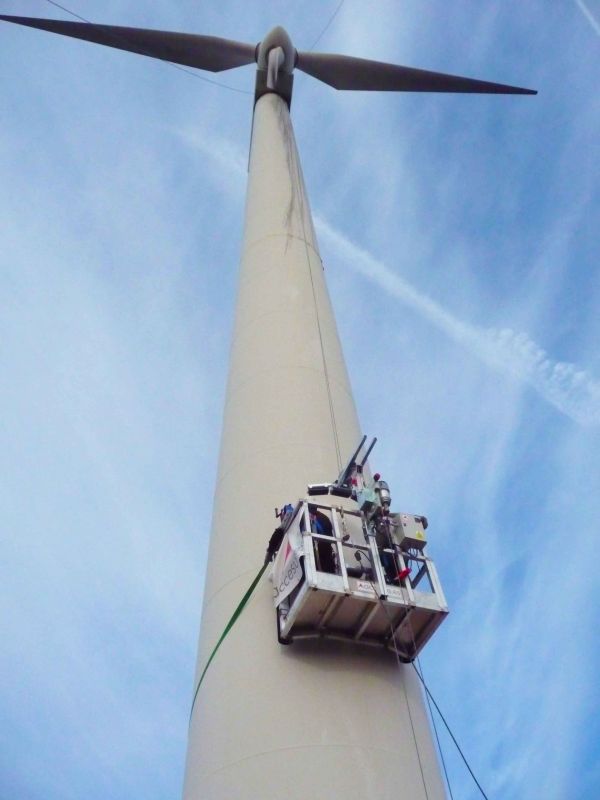

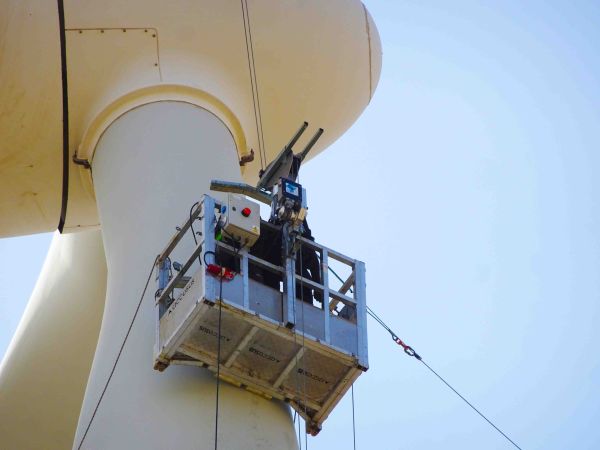

The Accesus MODUBLADE II blade platform is a suspended scaffold designed especially for the access and maintenance of wind turbine tower blades in windfarms.

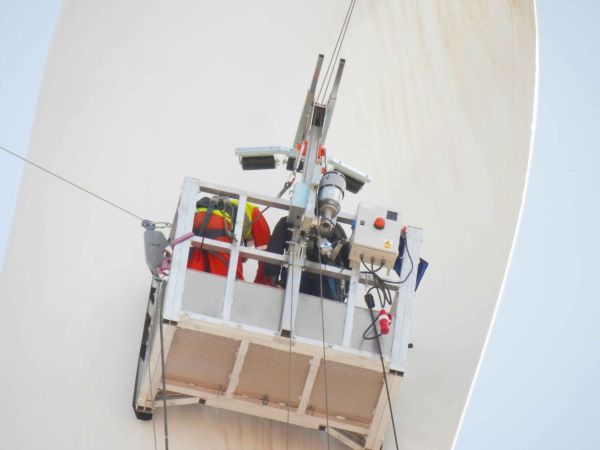

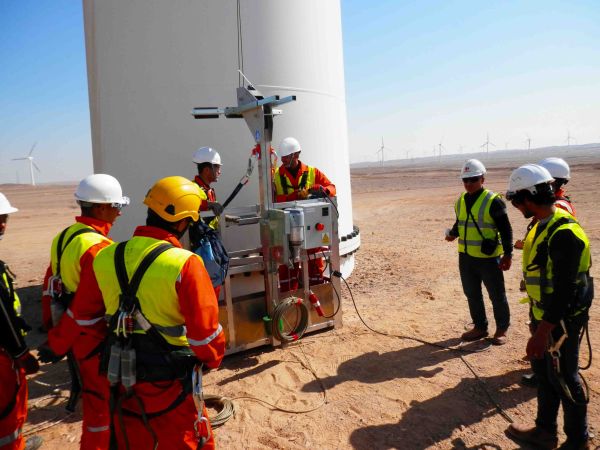

Made of aluminum, the MODUBLADE II is a hanging platform that can be demounted entirely into smaller pieces for more comfortable transport. Equipped with an e.lift® 501 electric lift, the MODUBLADE II is certified for lifting people and work tools. It also has a braking system, an emergency lowering system, and an overload detection system. It also has a Securichute® 600 fall protection system. The MODUBLADE II has a double wire rope suspension system (for work and one for safety).

Size guide

Description

The MODUBLADE II suspended scaffolding is provided with its corresponding CE certificate and its installation and use manual, as marked by the European Machinery Directive 2006/42 and EN 1808.

MODUBLADE II basic features summary table:

Support for wind turbines	Can be used in wind turbines from 30 to 150 m high and blades up to 4.5 m wide.
Max. load capacity	300 Kg
Weight	200 Kg
People capacity	2
Posible configurations (lenght in m)	1,60 o 2 m
Max. working height	Unlimited
Handrails height	1,30 m (trasera y laterales), 1 m (frontal)
Material	Aluminum
