PCP-L Gantry

PCP-L Gantry

0,00

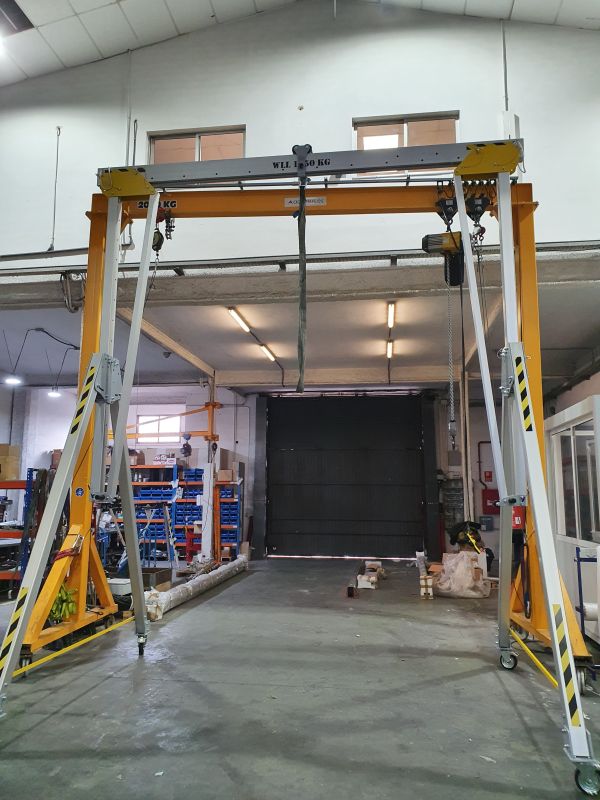

PCP-L aluminum frames are the lightest model with a load capacity between 500 and 2,000 kg.

Its design with different beam widths (from 2 to 7 meters) and 4 types of leg heights (from 1.6 to 6.4 meters), adjustable every 200 meters, allows a wide variety of possible configurations, suitable for lifting loads and/or a maximum of 5 people.

Made mostly of aluminum, the PCP-L is a model that can be easily assembled in a few steps by two people. Certified according to the safety standard EN 795 B.

This model comes with locking swivel wheels suitable for all types of surfaces and terrains, although special wheels can be ordered.



Ask here for more information

Summary table of basic features of the PCP-L gantry:

Maximum load capacity 500 to 2.000 Kg
Weight 111 to 234 Kg
Possible heights 4: A1 (1,600 to 2,200 mm), B1 (2,200 to 3,600 mm), C1 (3,200 to 5,400 mm) and C2 (4,230 to 6,430 mm)
Suitable for people loading 2 to 7 m
Available beam lengths 2,1:1
Safety factor for loads 10:1
Safety factor for rescuing people Max. 5, according to the configuration
Material Aluminum
