PCP-KLE GANTRY

PCP-KLE GANTRY

0,00

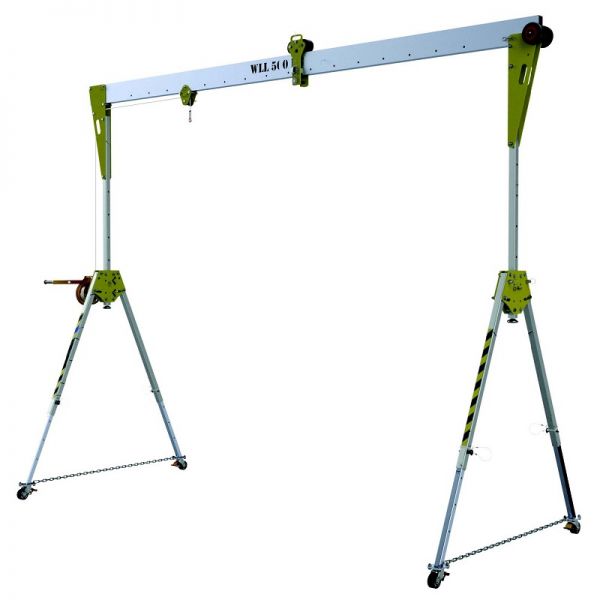

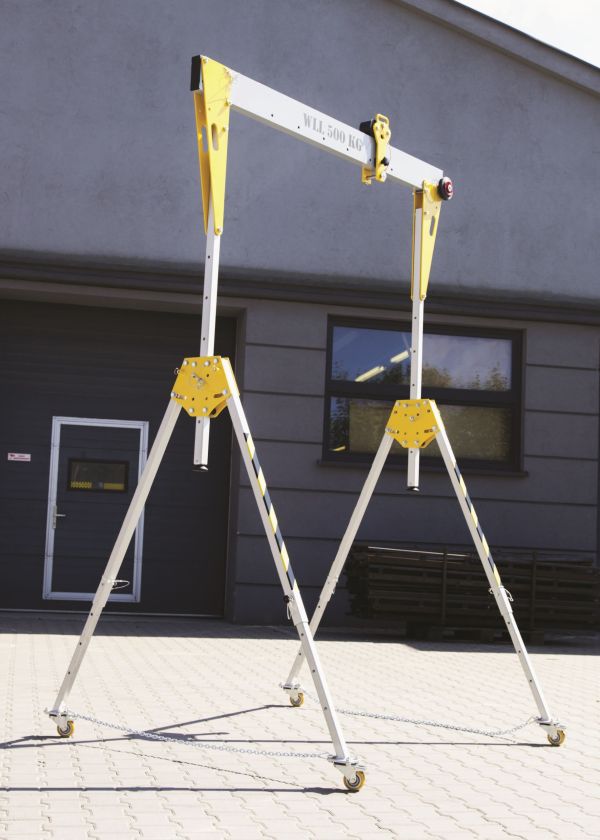

The aluminium gantry PCP-KLE is the most compact and lightest Accesus gantry to be transported with a maximum load capacity of 500 kg.

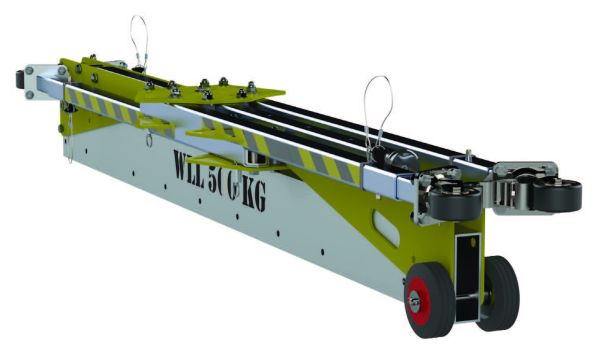

The configurations are not as extensive as those of the PCP-A or PCP-L gantries because it only has 5 possible beam widths (from 2 to 6 meters) and a single leg height (from 1.9 to 3 meters), adjustable every 200 meters. However, unlike its counterpart PCP-K, the PCP-KLE has transport wheels in the beam area that make it easier to move when folded. Furthermore, it is suitable for lifting loads and/or a maximum of 2 people

This model comes with locking swivel wheels suitable for all types of surfaces and terrains, although special wheels can be ordered.

Certified according to the safety standard EN 795 B.



Ask here for more information

Summary table of basic features of the PCP-KLE gantry:

Maximum load capacity 500 Kg
Weight  52 to 61 Kg
Possible heights 1: K1 (1.900 a 3.000 mm).
Available beam lengths  2 to 6 m
Safety factor for loads  2,1:1
Safety factor for rescuing people  10:1
Suitable for people loading Maximum 2, according to configuration.
Material Alumium
