CG600 crane basket
CG600 crane basket
The Accesus CG600 crane basket is a useful certified rescue system for 5 people.

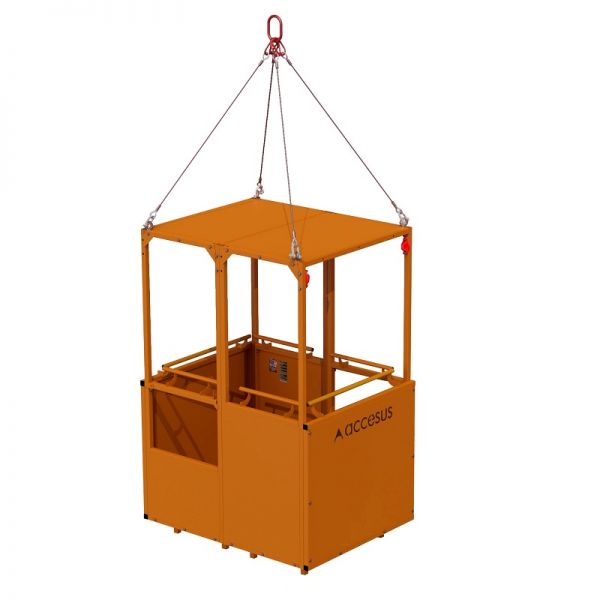

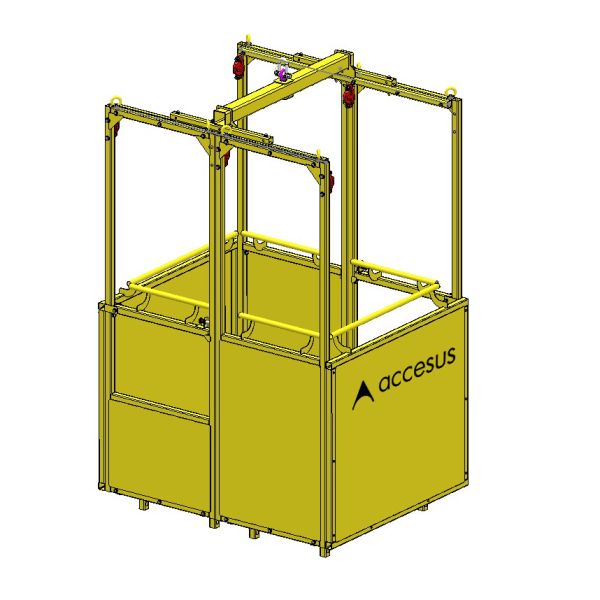

It is available in two different configurations: with a closed roof and without a roof, as required.
The CG600 crane basket can be used in a wide variety of sectors, such as unique construction sites, shipyards, ports, crane companies, waterworks, rescue planning, and slope work or heavy industry.
It is made up of two modules from the CG family and can be upgraded to the CG900 by adding screwed modules or reduced to the CG300.
This model includes five fixing points in accordance with the EN-795 standard for the safety of users.
CG600 crane baskets are equipped with two access doors with automatic locking and blocking system, protective handrails and bases, interior handrails to avoid trapping, lower support legs to prevent foot trapping, non-slip floors, and suspension slings. Besides, the basket always includes the suspension octopus when supplied to the customer.
As producers, we always provide the assembly and use manual and the safety certificate, also the CG600 basket has the load and product identification plates incorporated.
Completely removable, the CG600 suspended basket is easy to transport and store.
Produced according to the UNE-EN 14502-1 standard and certified by the testing, inspection and certification body Bureau Veritas.
CG600 suspended basket basic features summary table:
 Max. load capacity |
600 Kg (5 people) |
 Weight |
250 Kg |
 Maximum height |
Unlimited |
| Height of railings |
1,1 m |
| Total height |
2,5 m |
 Number of access doors |
2 |
 Dimensions |
1,52 x 1,2 x 2,27 m |
 Material |
Steel |
 Finished |
Paint |
FT-027-EN_MAN-BASKET-CRANE-CG300-and-CG600.pdf
