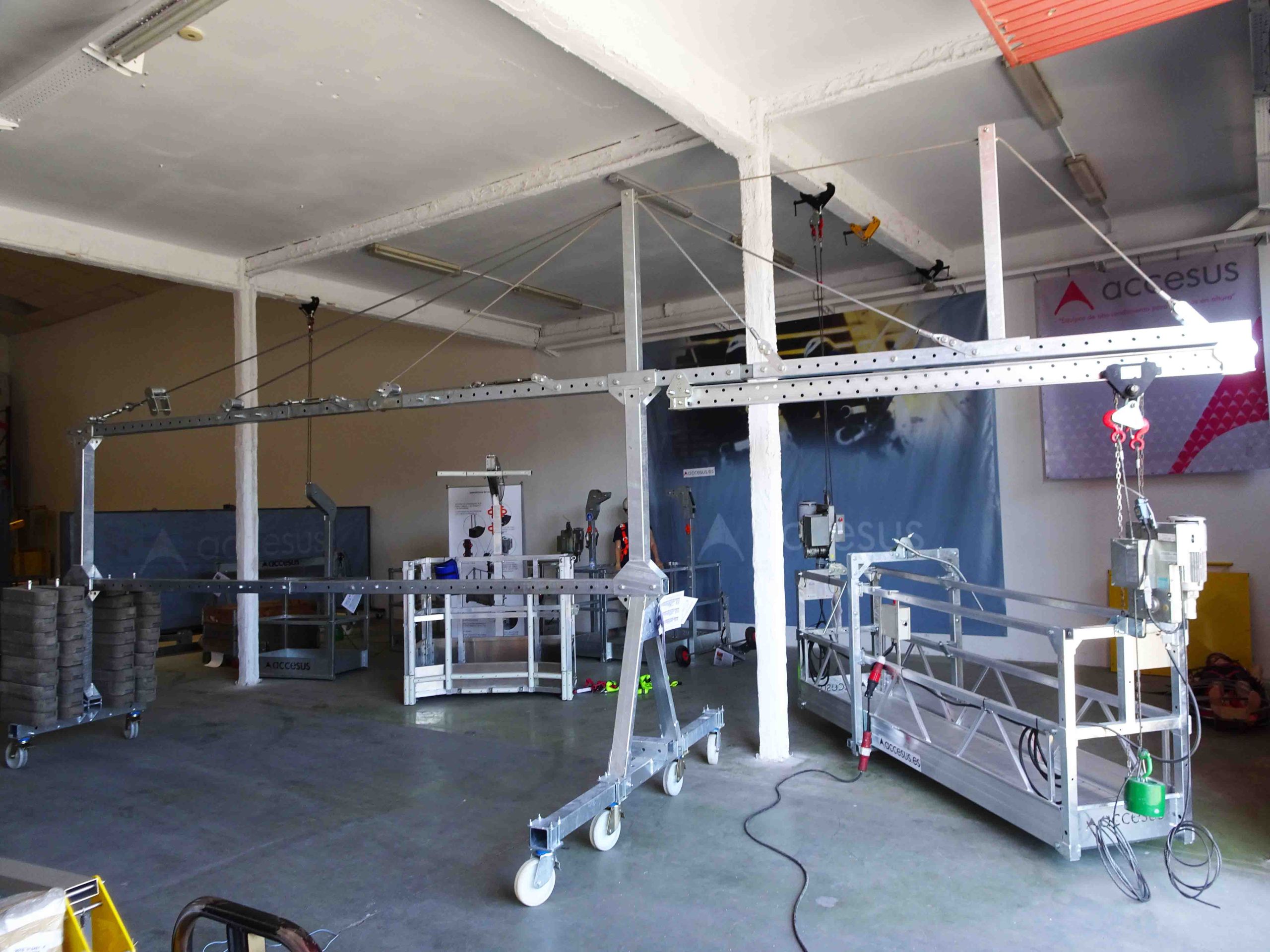

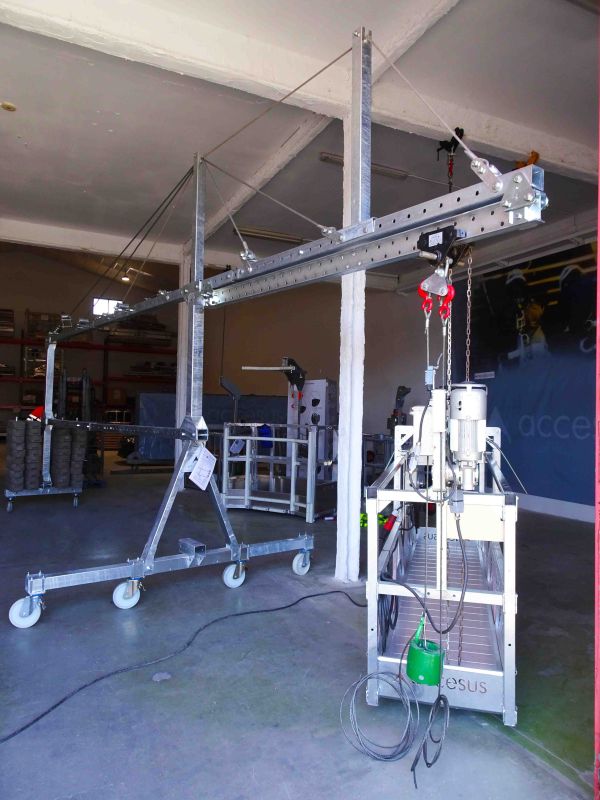

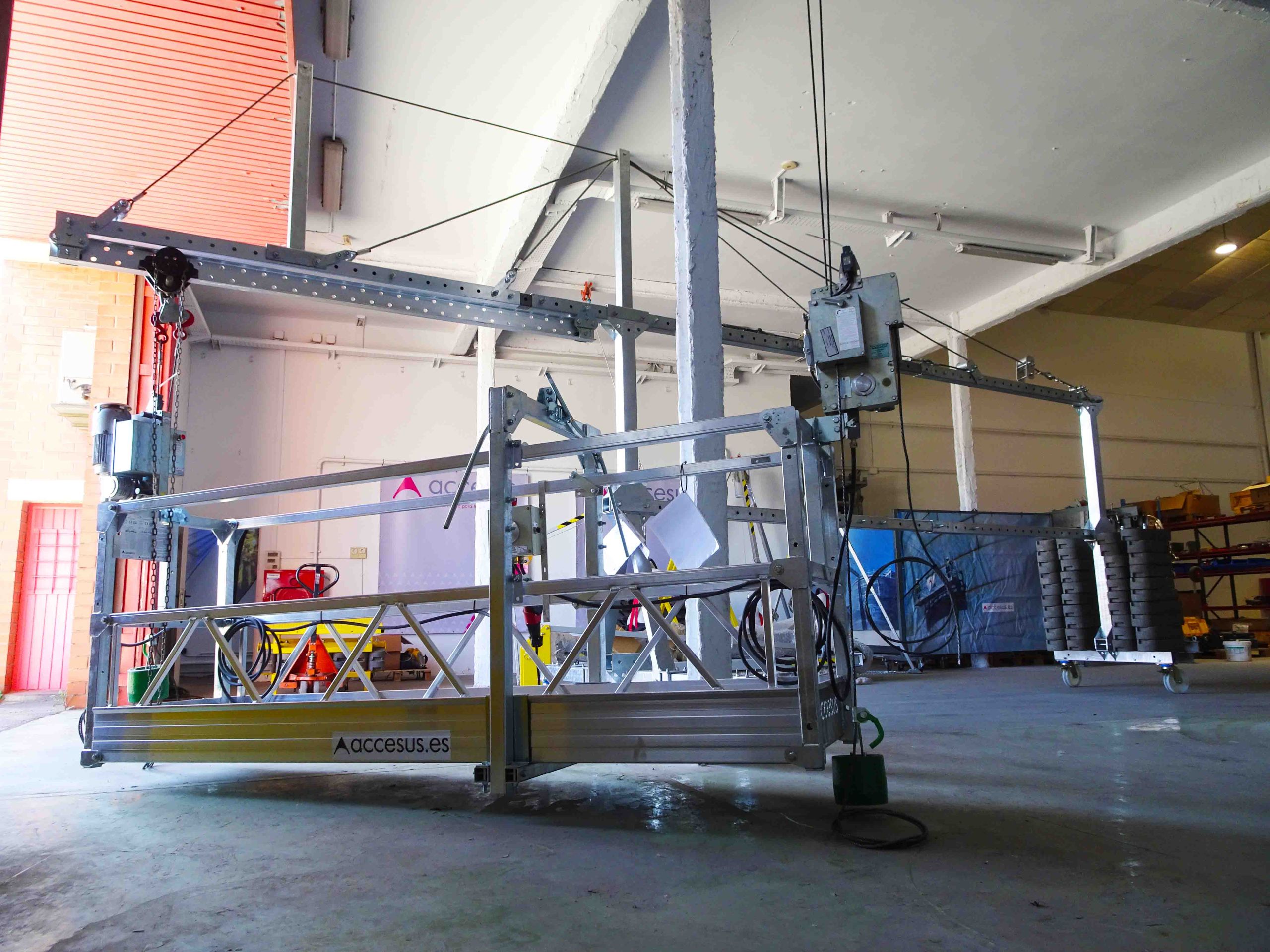

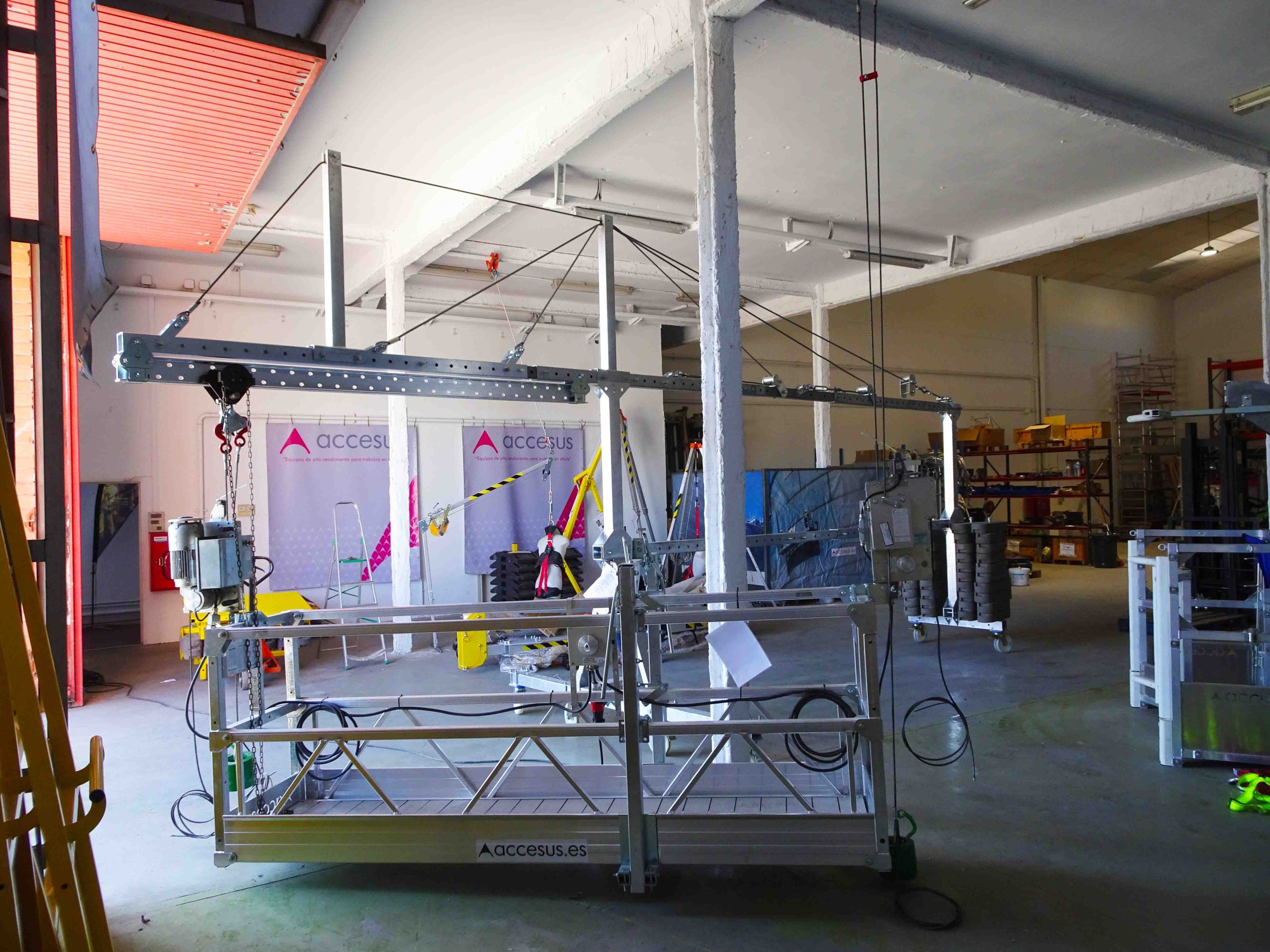

BRAKOO davit with longitudinal rail beam
BRAKOO davit with longitudinal rail beam
0,00€
The BRAKOO davit with rail beam by Accesus is a variation of the BRAKOO davit, which is only suitable for the higher-flying BRAKOO davit models: 2B, 2C, 2D, 3B, 3C, 3D, 4B, 4C, and 4D.

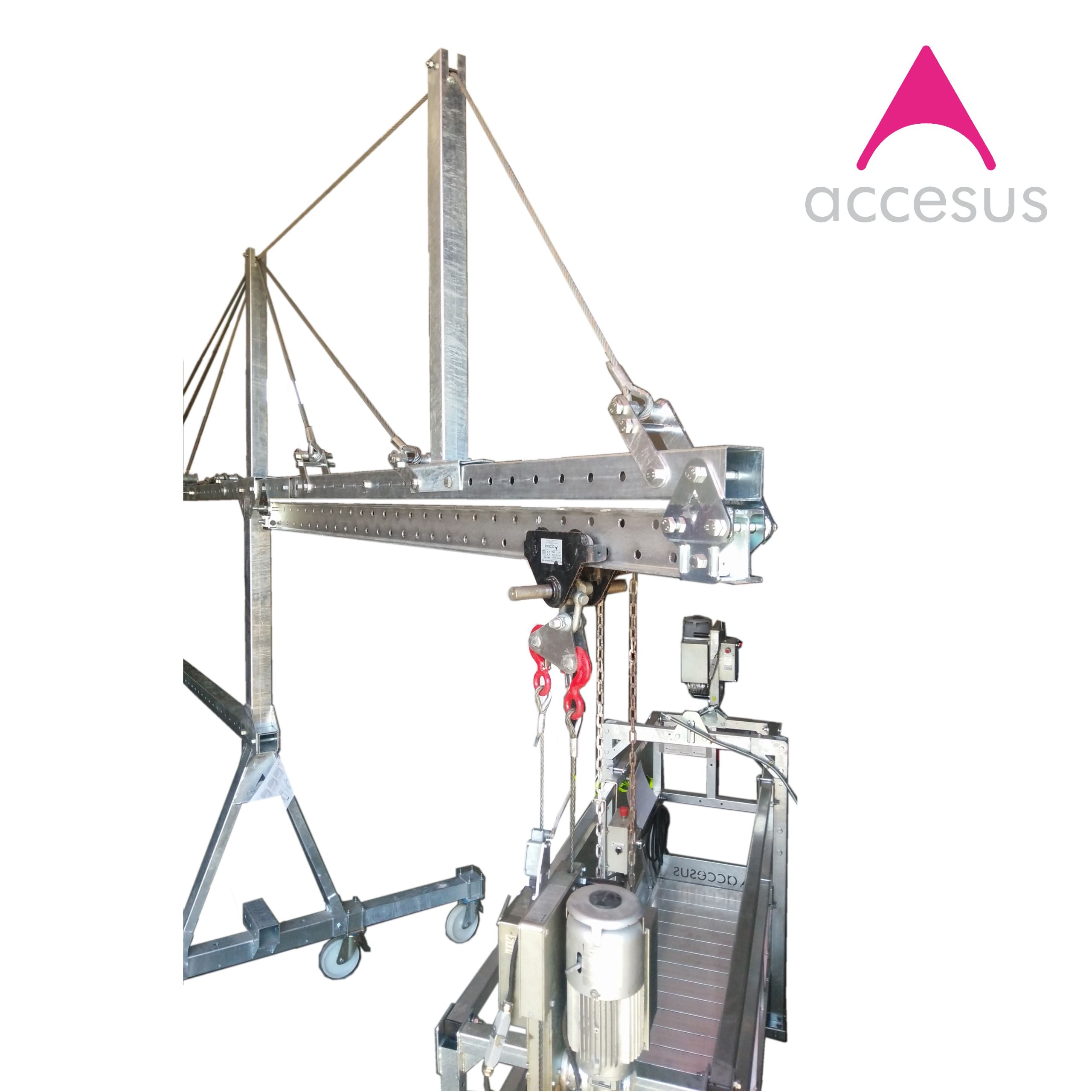

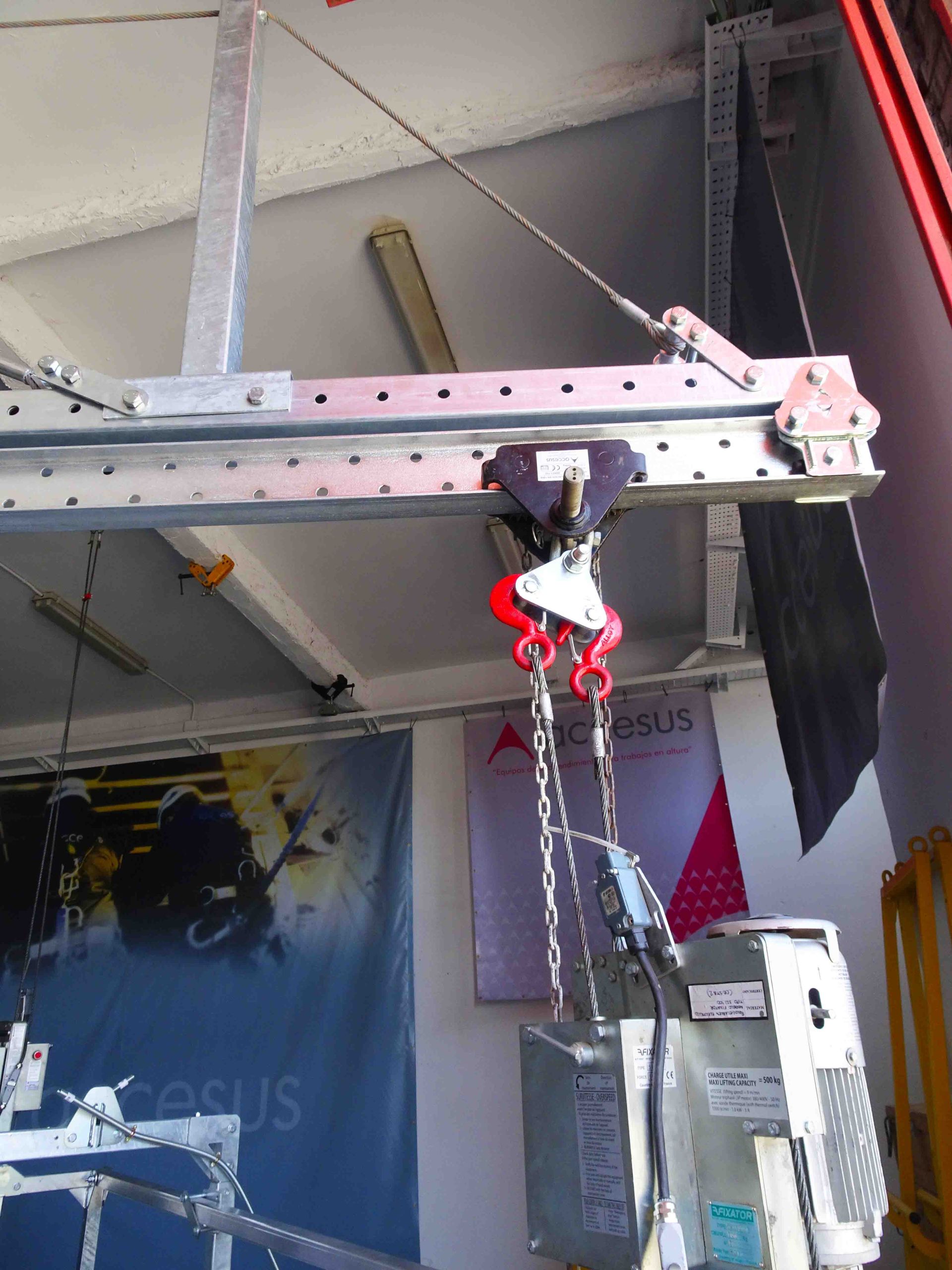

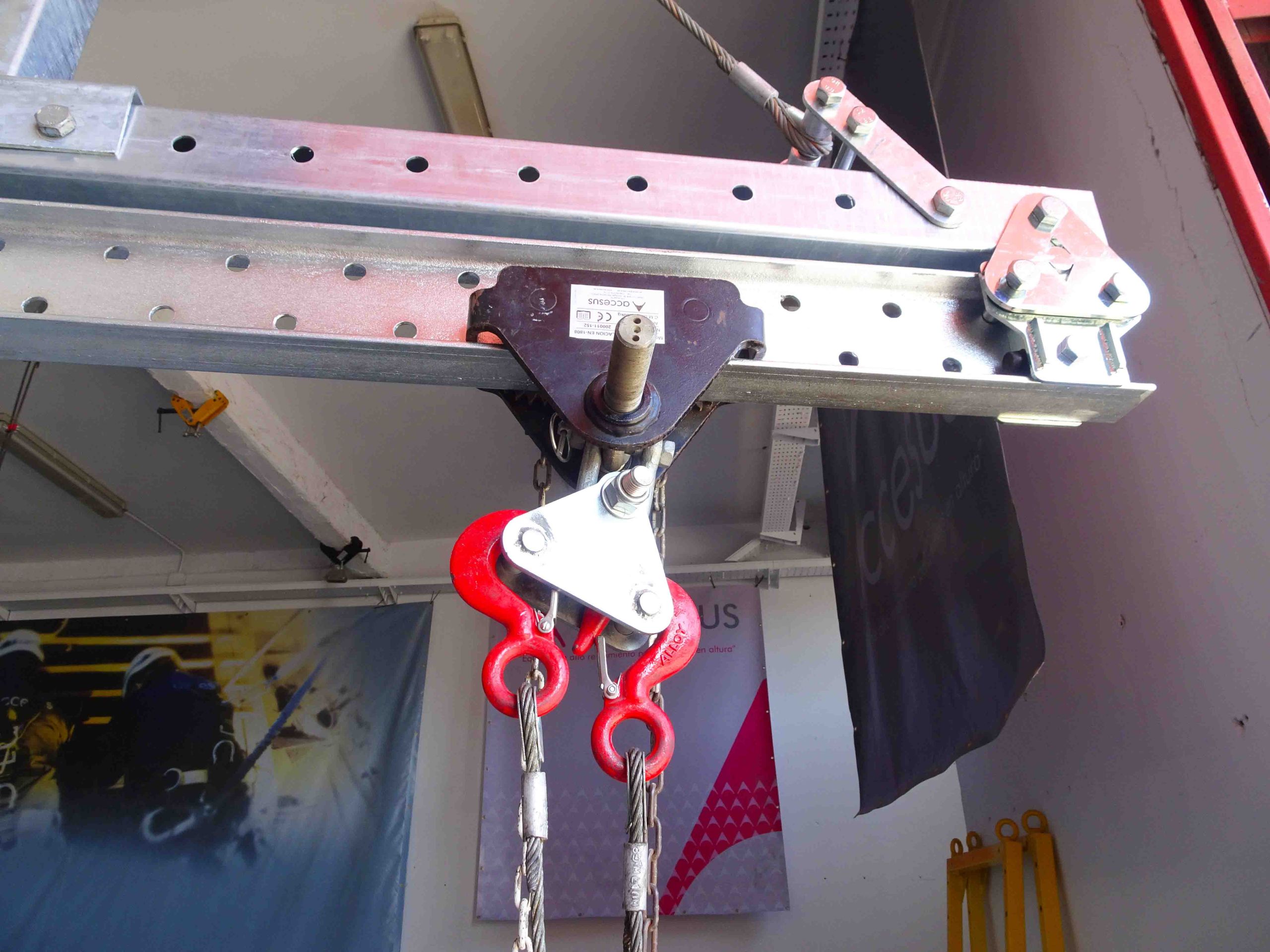

In contrast to its BRAKOO counterpart, the BRAKOO cantilever davit allows the scaffolding to be moved along the davit arm by a trolley, thus increasing the working length without impacting the davit.
If we look at the load capacity it can carry, the BRAKOO davit with rail beam can support up to 1,000 Kg and is approved for hanging scaffolding with lifts with a maximum load capacity of 300, 400 or 500 Kg.
The installation of the BRAKOO rail-beam davit needs two operators, although it is very fast using screws and pins that fix the 25 Kg counterweights in the davit housings. In all possible configurations, the maximum flight achieved with the BRAKOO beam rail davit is 3 meters.
Made of galvanized steel, it is a davit with great resistance to weather and adverse climatic situations.
The BRAKOO davit with longitudinal girder is delivered with the corresponding CE certificate and the user and assembly manual, as required by European Directive 2006/42 and EN 1808.
Summary table of basic features of the BRAKOO davit with longitudinal rail beam:
 Possible modular configurations |
9 models: 2B, 2C, 2D, 3B, 3C, 3D, 4B, 4C and 4D |
 Max. load capacity |
1.000 Kg |
 Maximum flight |
3 m |
 Min. and max. length |
2,3 - 8,3 m |
 Weight (without counterweights) model 2B |
160 Kg |
| Weight (without counterweights) model 2C |
195 Kg |
| Weight (without counterweights) 2D model |
235 Kg |
| Weight (without counterweights) model 3B |
275 Kg |
| Weight (without counterweights) 3C model |
310 Kg |
| Weight (without counterweights) 3D model |
350 Kg |
| Weight (without counterweights) model 4B |
280 Kg |
| Weight (without counterweights) model 4C |
315 Kg |
| Weight (without counterweights) model 4D |
355 Kg |
 Height under the beam, model 2 |
1.250 mm |
| Height under the beam, model 3 |
2.200 mm |
| Height under beam models 4 |
2.500 mm |
 Material |
Galvanized steel |
