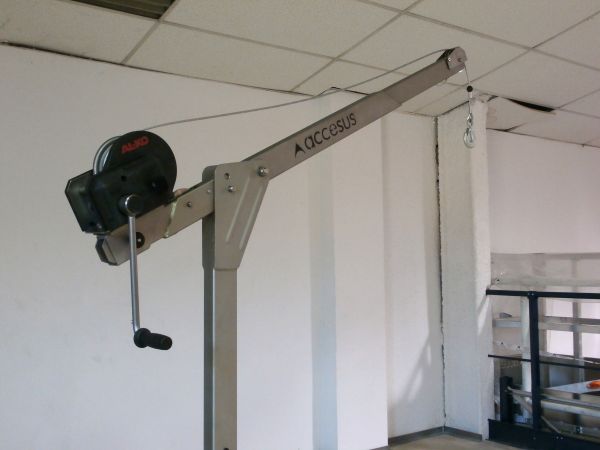

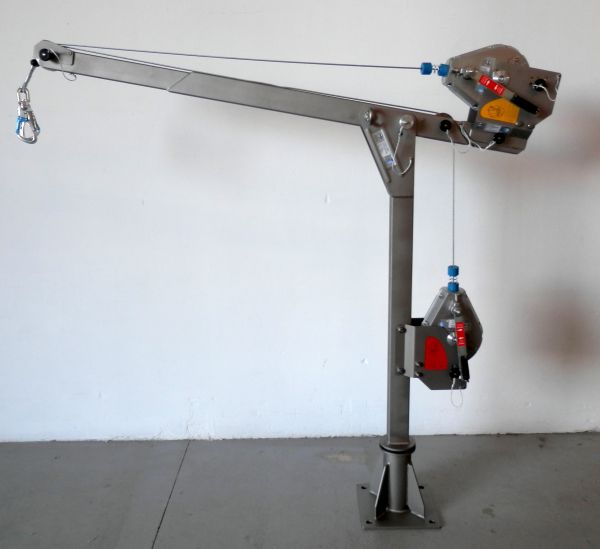

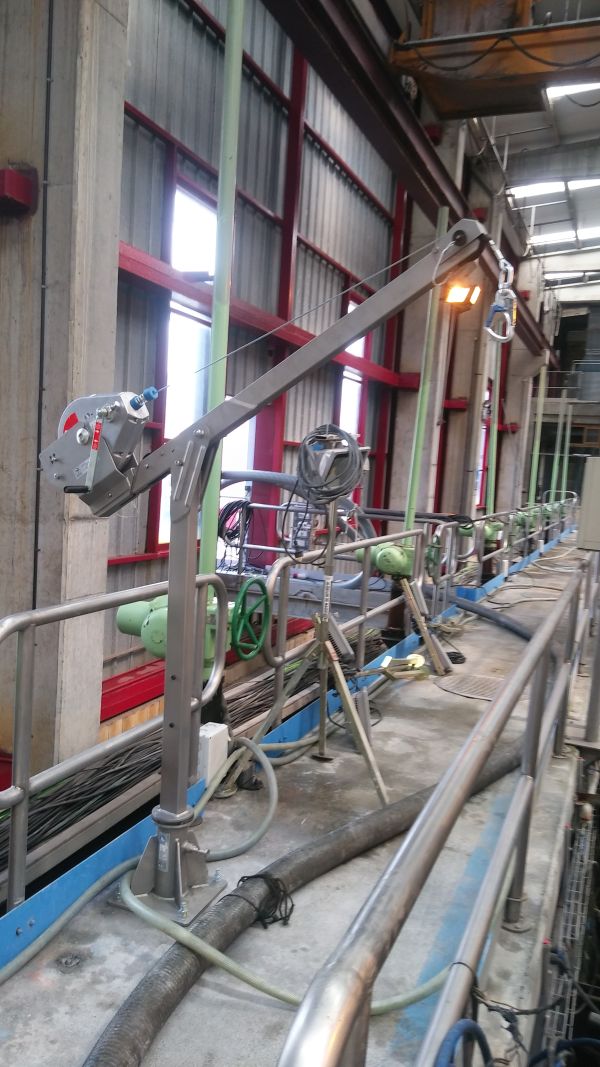

The BR1, BR2, BR3 and MW rescue arms are devices for rescuing and protecting people designed for work in sewage treatment plants, manholes and difficult to access places.
Easy to install and dismantle, this family of Access products’ rescue arms fits different bases that can be installed in other places. Thus, we can mount them on bases on the ground or vehicle, lateral bases for concrete walls, or embedded bases on the floor. On the other hand, these rescue arms BR1, BR2, BR3, and MW can be fitted with 1 or 2 retractable fall arresters with a rescue device of up to 60 meters in length (EN 360 and EN 1496) and a winch for lifting loads of up to 300 kg.
Made of stainless steel these rescue arms are very versatile and durable, even allowing exposure to weather and adverse climate situations. The BR2 and BR3 rescue arm models offer adjustable leg heights.
All models of the rescue arm BR1 BR2 BR3 and MW (manhole model) are CE marked and comply with the safety regulations for temporary anchorage points (EN 795B), fall arresters (TS 16415B) and equipment for rescue tasks (EN 1496B).
Summary table of basic features of the BR1, BR2, BR3 and MW rescue arms:
 Max. load capacity |
36 Kg |
 Weight BR1 |
2,30 m |
 Arm range BR1 |
0,75 m from the central axis of the leg |
| Weight BR2 |
39 Kg |
| Possible heights BR2 |
De 1,53 a 1,83 m |
| Arm range BR2 |
De 1,15 a 1,25 m |
| Weight BR3 |
42 Kg |
| Arm range BR3 |
De 1,75 a 2,06 m |
| Arm range BR3 |
De 1,15 a 1,25 m |
| Weight MW |
42 Kg |
| Length of the MW arm |
1,54 m |
 Material |
Stainless steel |
